Rubber floor Trunking – Cable runner floor

Floor Cord Cover, Floor Cable Protector, Extension Cord Cover, Protect Wires & Prevent Cable Trips, Cable Management Solution

Durable Floor Cable Cover: The floor cord cover is a perfect solution for hiding and protecting cords, cables, and wires while creating a smooth and trip-free surface floor in homes, offices, factories, gyms, and hotels whenever you need to cover cables across floors

The flexible Rubber  floor trunking  is easy to coil and uncoil to Uncoil

The Flexible Flexible PVC Material is made of Light Duty, Medium, and Heavy Duty

The floor Rubber Cable Runners and Cover protector  are made of Light duty, flexible PVC, which is effectively uncoiled and cut to the required size, has no bad smell, and needs no additional treatment (heating, boiling) to lay flat

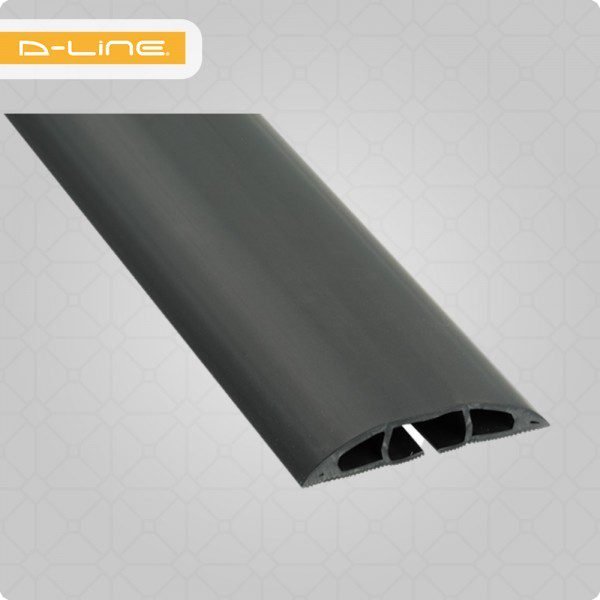

Light Duty Floor Cable Protectors are popular as a temporary solution to cover cables across open areas with light foot traffic.

The 17 x 9mm cavity can accommodate 2x 8mm outer diameter flex cables.

Available in 1.8m and 9m rolls.

• Ideal for areas with light foot traffic
• Address a common cause of trips, tugs, and falls
• Can protect up to 2x 8mm diameter cables
• Ribbed non-slip base, pre-split rear for ease of use
• Flexible PVC – Supplied coiled inbox; simply uncoil to lay flat
• Fully safety tested and certified to BS EN 60670-1:2005

The heavier gauge design of Medium Duty Floor Cable Protectors addresses cable trip hazards… while providing effective protection for cables.

By minimizing the risk of split insulation and damaged conductor strands, the danger of electrocution and hot spots (that create fire risks) is minimised also.

Lengths are available as 1.8m or 9m options and supplied with friction-fit connector pins so that they can be joined to make continuous runs when necessary.

• Ideal for areas with regular foot traffic
• Protect cables, and address a common cause of trips and falls
• 14mm x 9mm cavity
• Ribbed non-slip base, pre-split rear for ease of use
• Flexible PVC – Neat tapered design, lengths uncoil to lay flat
• Fully safety tested and certified to BS EN 60670-1:2005

PVC Duct Cord Protector Floor Cable Concealer Channel, Prevent Trip Hazard for Home, Office or Warehouse, Black & Yellow

Ideal for up to 3 x 8mm diameter cables, this versatile Cable Protector is supplied with connector pins so it can be cut to shorten, then reconnected, or combined with other lengths to make longer runs.

The hazard stripe gives greater visibility to pedestrians.

Available in 1.8m and 9m rolls.

Supplied with connector pins, so lengths can be joined to make longer runs.

• Ideal for areas with regular foot traffic
• Protect cables, and address a common cause of trips and falls
• Prevent cable insulation damage/electrocution and risk of broken conductor strands­­
• 30mm x 10mm cavity
• Ribbed non-slip base, pre-split rear for ease of use
• Flexible PVC – Neat tapered design, lengths uncoil to lay flat
• No sharp curb-effect, pedestrian friendly



Yellow Hazard Stripes for Safety and Visibility: Bright yellow stripes run along the length of the top of the cord protector to provide greater visibility, and address a cable trip hazard in areas with regular foot traffic

Easy Installation: The cable protectors have a ribbed non-slip base and pre-split rear for ease of installation, simply push cords into the cable cavity; the anti-slip texture on the bottom prevents sliding on smooth floors

Protect Many Cords with Large Channels: The cord protector with large channels is wide enough for most power cords, ethernet, CAT5, and CAT6 cables Dimensions: – 6ft length x 3.15″ width x 0.78″ height

Alternative Floor cable trunking Solutions

PVC – Floor Trunking  Covers

Plastic cord covers and plastic cable ramps are other options for homes and offices. Plastic cable covers provide a similarly attractive appearance as light capacity cord covers, while also being cost-efficient. While plastic floor cable covers protect a large number of wires, plastic wire covers for walls are also available (and convenient).

• Special Design with Single Cable Capacity: Perfect when you only need to conceal a single cable. For example, to conceal a speaker cable, a power strip cable, Ethernet cable, or other cables across open floors or countertops, leaving a smooth, trip-free surface.
• High-Quality Floor Cable Concealer: Made of flexible PVC, coiled packing – but very easy to flatten. There is no need to add boiling water to uncoil it, just reroll it in the opposite direction, and then let it stand for a while.
• Sturdy and Durable – 2 mm thick PVC, the rounded surface provides a seamless solution and allows wheels to roll easily over it. The PVC material is flexible, yet strong, perfect for cables in high-traffic doorways, such as carpets in event venues or warehouses.
• Easy to USE – The floor cable management kits include strong adhesive tapes that can help secure the cover to the floor. Simply cut to your desired length using scissors, ensuring a perfect fit for any home or workspace.



Metallic Semicircular Floor Trunking and Floor Cable Runners

Arc or Semicircular Metal floor trunk is a perfect cable management solution for creating a link between trunking, column, mini-column, floor units or protecting cables on passageways

The Metal floor cable trunks are Widely applied to electrical and Data wire protection of various important fields: intelligent buildings, construction decoration industry, shipbuilding, oilfield, chemical plant, railways, power plant, office networking, and much more.

Features of the metallic floor Cable Covers

• Low profile design allows chairs, carts, and strollers to roll over cables
• Available in customs sizes  hence can be fabricated to accommodate a wide range of applications
• Can be cut down to shorter lengths using a reciprocating saw or similar cutting tool
• Lightweight for easy handling and installation
• Can be used for both permanent or temporary applications
• Compact size makes storage and transport easy

Gauge	Heavy Duty, Medium Duty, Light Duty
