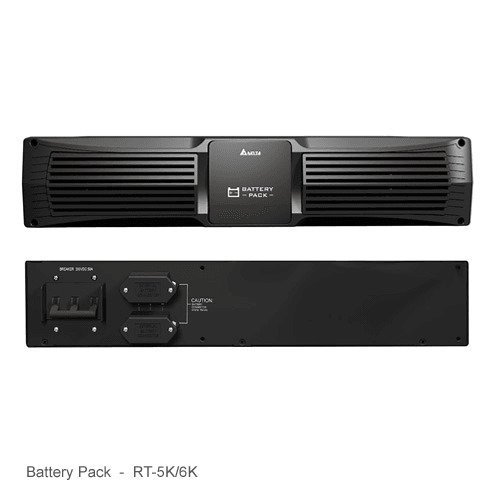

New RT 5-20kVA 2U EBC 16x7Ah Delta UPS

The New RT 5-20kVA 2U EBC with 16x7Ah Batteries – Delta UPS is a high-performance uninterruptible power supply (UPS) system designed to provide reliable power protection for critical applications. With a power capacity range from 5kVA to 20kVA, this UPS is scalable to meet varying power requirements.

This UPS-Uninterruptible Power Supply & power Back Up is equipped with 16 sealed lead acid (SLA) batteries, each having a capacity of 7Ah. This battery configuration allows for extended runtime during power outages, ensuring continuous operation of your critical equipment.

Operating on a 230V AC input voltage with adjustable settings and a frequency of 50/60 Hz, the UPS is adaptable to different electrical environments.

The pure sine wave output voltage of 230V AC, synchronized with the input frequency, ensures clean and stable power delivery to connected devices, protecting them from voltage fluctuations.

Technical Specifications

• Model: New RT 5-20kVA 2U EBC Delta UPS
• Power Capacity: 5kVA to 20kVA (5000 VA to 20000 VA) – Scalable
• Form Factor: 2U Rackmount
• Battery Type: Sealed Lead Acid (SLA)
• Battery Capacity: 16x7Ah (16 Batteries of 7Ah Capacity Each)
• Input Voltage: 230V AC (Adjustable)
• Input Frequency: 50/60 Hz (Auto-Sensing)
• Output Voltage: 230V AC (Adjustable)
• Output Frequency: 50/60 Hz (Synchronized with Input)
• Output Waveform: Pure Sine Wave
• Efficiency: ≥ 92%
• Transfer Time: Zero Transfer Time (Online Double Conversion)
• Bypass Voltage: 230V AC (Adjustable)
• Bypass Frequency: 50/60 Hz (Auto-Sensing)
• Overload Capacity: 110% for 60 minutes, 125% for 10 minutes, > 150% for 1 minute
• Crest Factor: 3:1
• Power Factor: ≥ 0.9 (Lagging)
• Communication Ports: RS232, RS485, SNMP, USB (Optional)
• Display: LCD/LED Display for Real-Time UPS Status and Parameters
• Audible Alarm: Battery Mode, Low Battery, Overload, Fault, Bypass Active
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -15°C to 50°C (5°F to 122°F)
• Humidity: 0% to 95% RH (Non-Condensing)
